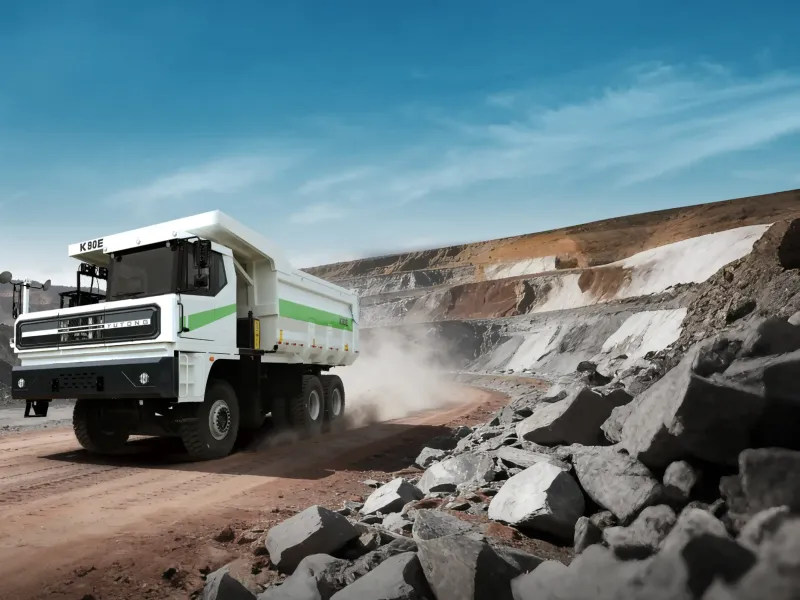

Yutong YTK90E Electric Mining Truck
The Yutong YTK90E Electric Mining Truck is an electric mining truck from Yutong (China). It comes with a 352 – 528.6 kWh battery, with a payload of 60 t.
- Battery
- 352 – 528.6 kWh
- Payload
- 60 t
- Peak power
- 700 kW
- Body
- 34 m³
Yutong YTK90E Electric Mining Truck specifications
Battery and charging
- Battery capacity
- 352 – 528.6 kWh
- Battery configuration
- 352 kWh, or 528.59 kWh optional
Power and drive
- Motor power
- 430 kW continuous, 700 kW peak (939 hp)
- Gradeability
- 40%
Weights and dimensions
- Payload
- 60 t (132,300 lb)
- Body capacity
- 34 m³
- Length × width × height
- 9,445 × 3,450 × 4,150 mm
- Wheelbase
- 4200+1550 mm
Further details
- Turning diameter
- 22 m or less
- Body
- 34 m³ struck, earthwork body
Source: Yutong Trucks: YTK90E, checked 27 October 2026.
What the Yutong YTK90E Electric Mining Truck is built for
The Yutong YTK90E Electric Mining Truck is a battery-electric off-highway mining truck carrying a 60 t load in a body of 34 m³. Built for open-pit mines and quarries rather than public roads, it works the short, repeated haul between the face and the crusher or dump, where an electric drive recovers energy on every loaded descent.
Battery and charging
The Yutong YTK90E Electric Mining Truck is offered with 352 – 528.6 kWh batteries.
Power and drive
Its electric drive delivers 430 kW continuously and 700 kW at peak (939 hp).
The Yutong YTK90E Electric Mining Truck climbs gradients of up to 40%.
