Electric mining truck

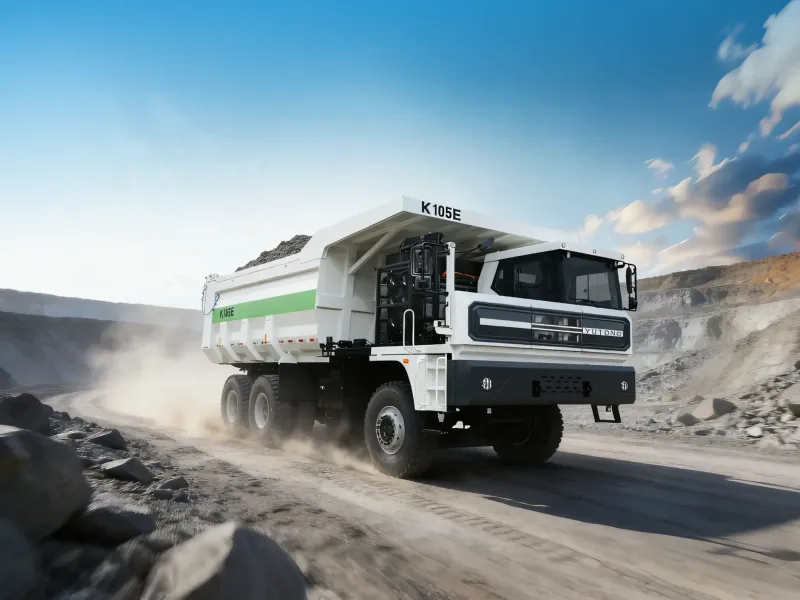

Yutong YTK105E Electric Mining Truck
The Yutong YTK105E Electric Mining Truck is an electric mining truck from Yutong (China). It comes with a 352, 528 or 704 kWh battery, with a payload of 70 t.
- Battery
- 352, 528 or 704 kWh
- Payload
- 70 t
- Body
- 40 m³
Yutong YTK105E Electric Mining Truck specifications
Battery and charging
- Battery capacity
- 352, 528 or 704 kWh
- Battery configuration
- 352 kWh (C2 enhanced pack), 528 or 704 kWh optional
Power and drive
- Gradeability
- 35%
Weights and dimensions
- Payload
- 70 t (154,300 lb)
- Body capacity
- 40 m³
- Length × width × height
- 10,075 × 3,850 × 4,360 mm
- Wheelbase
- 4400+1750 mm
Further details
- Turning diameter
- 24 m or less
- Body
- 40 m³ struck, earthwork body
Source: Yutong Trucks: YTK105E, checked 27 October 2026.
What the Yutong YTK105E Electric Mining Truck is built for
The Yutong YTK105E Electric Mining Truck is a battery-electric off-highway mining truck carrying a 70 t load in a body of 40 m³. Built for open-pit mines and quarries rather than public roads, it works the short, repeated haul between the face and the crusher or dump, where an electric drive recovers energy on every loaded descent.
Battery and charging
The Yutong YTK105E Electric Mining Truck is offered with 352, 528 or 704 kWh batteries.
Power and drive
The Yutong YTK105E Electric Mining Truck climbs gradients of up to 35%.
