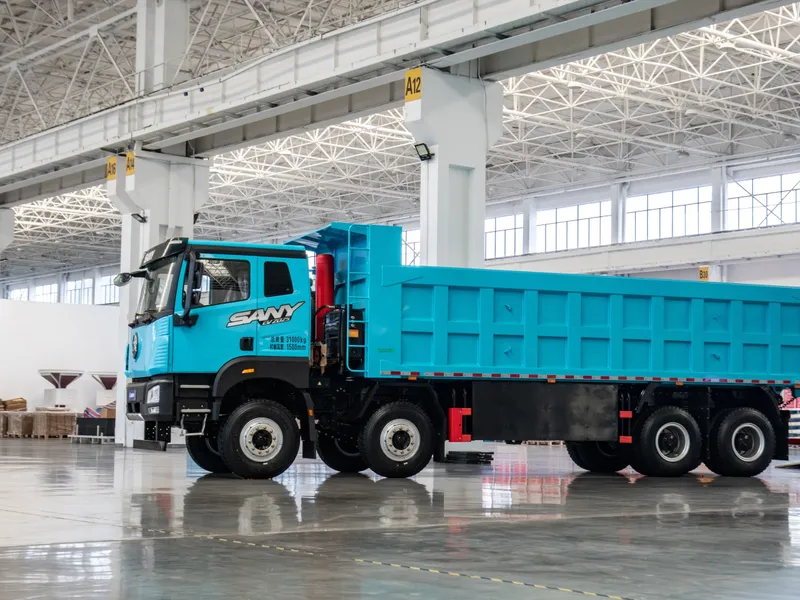

SANY SYZ432C-8LRBEVSD
The SANY SYZ432C-8LRBEVSD is an electric dump truck from SANY (China). Its rated weight is 70 t.
- GVW
- 70 t
- Peak power
- 460 kW
- Body
- 32 m³
SANY SYZ432C-8LRBEVSD specifications
Battery and charging
- Cell chemistry
- Lithium iron phosphate (LFP)
- Battery maker
- CATL
- Charging
- Battery swapping
Power and drive
- Motor power
- 315 kW continuous, 460 kW peak (617 hp)
- Transmission
- LVKON 4AMT (with Force extractor)
Weights and dimensions
- Gross vehicle weight
- 70 t (154,300 lb)
- Curb weight
- 22.7 t (50,000 lb)
- Body capacity
- 32 m³
- Length × width × height
- 10,990 × 2,710 × 3,600 mm
- Wheelbase
- 2000+4150+1500 mm
Further details
- Drive motor
- LVKON EM310H46-A
- Front axles
- 2×9.5T
- Rear axles
- 2×16T
- Cab
- Sany Cab CB329
- Tyres
- 12.00R24
Source: SANY product page · SANY brochure (PDF), checked 27 October 2026.
What the SANY SYZ432C-8LRBEVSD is built for
The SANY SYZ432C-8LRBEVSD is a battery-electric dump truck with a gross vehicle weight of 70 t (154,300 lb) and a 32 m³ body. Dump trucks run short, fixed cycles between quarry, plant and site, which suits electric trucks well: the routes are predictable and the trucks return to the same charging or swap point every shift.
A gross weight above 50 t is beyond road limits in most countries: trucks of this size work on mine roads, large construction sites and in markets that permit heavy tippers.
Its rated weight is above the median of 31 t across the 5 electric dump trucks with a stated gross vehicle weight in our database.
Battery and charging
It charges by battery swapping, where a swap station exchanges the depleted pack for a charged one in about five minutes. Swapping keeps a truck working around the clock and is widespread on Chinese freight corridors, mines and construction sites, where swap stations serve whole fleets.
Power and drive
Its electric drive delivers 315 kW continuously and 460 kW at peak (617 hp); its peak power is close to the median of 451 kW across the 9 electric dump trucks in our database.
Drivetrain: lVKON 4AMT (with Force extractor).
It weighs 22.7 t (50,000 lb) empty.
